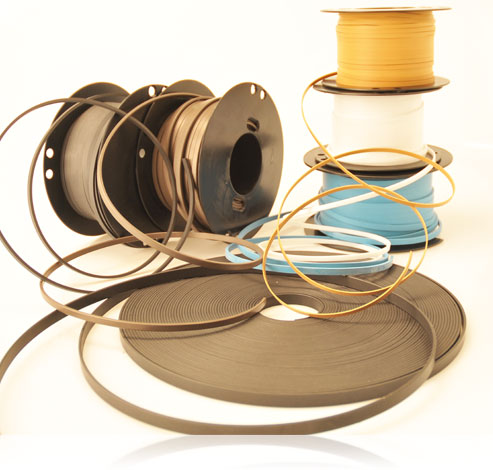

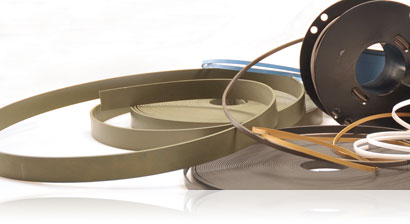

Bearing Tapes

For the heaviest applications in the hydraulic field, motion control and mechanical field, Guarniflon® developed a new family of products, made by special PTFE compounds and devoted technologies, in order to fulfil Guarniflon® customers requirements.

Compounded PTFE materials with bronze, carbon, graphite or other fillers are designed to enhance properties such as:

  • wear resistance
  • coefficient of friction
  • compression strength

Available:

  • with sharp edges
  • with chamfers on 2 or 4 angles
  • knurled on 1 or 2 sides
  • etched on 1 or 2 sides
Fasce guida

Thickness from mm. 1,5 to mm. 5 - Width from mm. 4 to mm. 300

Width in mm.   Thicknessn in mm.
  4
  5
  5,4
  5,5
  6
  6,1
  7   1,50 - 2,00
  7,9   2,50 - 3,00
  8   4,00 - 5,00
  9
  9,5
  9,8
  11
  11,5
  12
Width in mm.   Thicknessn in mm.
  12,5
  13
  14
  14,5
  15
  16
  16,5   1,50 - 2,00
  18   2,50 - 3,00
  19,5   4,00 - 5,00
  20
  21,5
  22
  24
  24,5
  25
Width in mm.   Thicknessn in mm.
  27
  27,5
  28
  29,5
  30
  30,5
  31,5   1,50 - 2,00
  32   2,50 - 3,00
  34   4,00 - 5,00
  34,5
  35
  38
  40
  45
  50
Tolerance standard
Width

from 3,00 to 40,00 mm.   ± 0,10 mm.

from 40,011 to 50,00 mm.   ± 0,20 mm.
Thickness

from 1,00 to 4,00 mm.   + 0/-0,05 mm

from 4,01 to 5,00 mm.   ± 0,05 mm.
Rolls lenght

Thickness mm.

Width mt.
1,5

35
2

25
2,5

20
3

16
4

24
5

15
Fasce guida * Customized dimensions on request.
